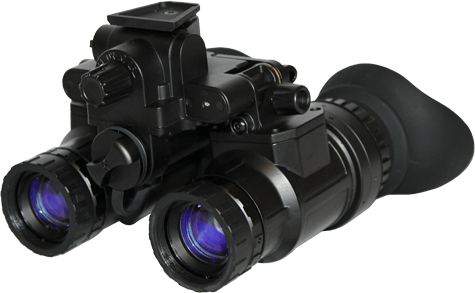

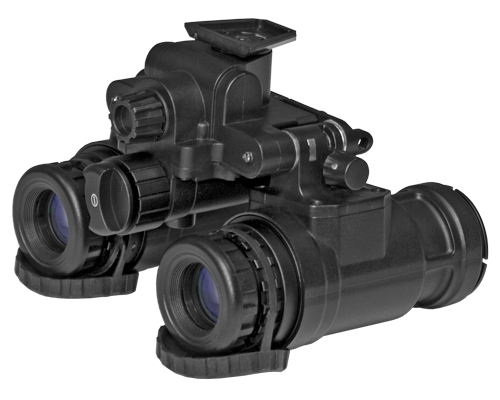

The PS31 Binocular Night Vision Device (BNVD) is a compact, lightweight, dual tube goggle to replace the legacy PS15. The PS31s can be outfitted with various levels of high-performance US made Gen 3 image intensifier tubes. The PS-31 was designed to increase system resolution, significantly reduce head borne weight, improve system of center of gravity, provide additional operational utility and improve overall operator situational awareness and adding a 40 deg FOV for maximum visibility in the field. These tubes are auto gain-capable, allowing the system to adjust the brightness of their image as situations on the ground dictate. The PS31 BNVD has independently pivoting tube housings that allow the operator to run the goggle in a binocular or monocular configuration. Using two tubes at once allows the eyes to create depth perception and increases the ease in maneuvering terrain and obstacles as well as operating devices such as control panels and door knobs. Monocular configurations allow for ease in transitioning between various lighting conditions that often occur on the battlefield and cause operators to switch between night vision and weapon-mounted optics. A benefit to the pivoting tube housings is the ability to mount the flatten goggle against the front helmet surface when stowed. The ability to pivot the tube housings against the helmet surface creates an overall lower profile, increasing operator safety and equipment life. Includes instruction manual, lens tissue, soft carrying case, helmet mount and one CR123 battery.
Specifications
- Objective: 18mm
- Magnification: 1x
- Battery Size: CR123A
- Weight: 1.28 lbs
- Diopter Adjustment: -5/+5
- Field of View: 40 Degrees
- Generation: 2+ Green Phosphor
- Focus Range: 25 yds to Infinity
- Battery Life: Up to 300 hrs
- Resolution: 58-60 Ip/mm
ATN | MPN: NVGOPS3142G | UPC: 658175124436
