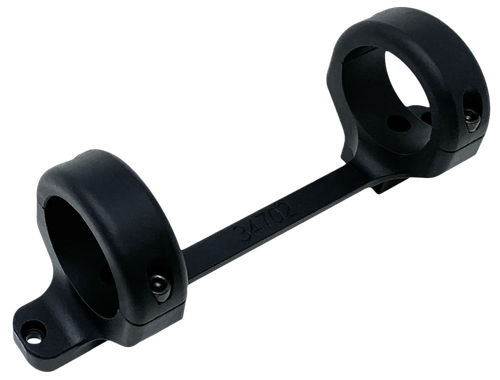

Shop the DNZ Game Reaper-Remington Scope Mount/Ring Combo Matte Black 30mm at Nautilus Sporting Goods. Key spec: 5.391" long.
For Remington 700: Also fits the Remington model 721 and 722 & Bergara B14. Right-hand mount fits right hand firearms and left-hand mounts fit left hand firearms.
MOA Mounts are tapered down on front for long range shooting. Height will be about.03" lower on front ring than a standard mount.
Base screws are 6-48 X 1/4" long. Ring screws are 6-40 X 5/8" long. Both use a 7/64" Allen wrench.
Some of the.338 Lapua receivers have been modified at the factory and have larger base screws. The size of them is 8-40 and will use a 9/64 Allen wrench. Check your gun and see because the mount will have to be modified. Choose Model 700 (8-40 screws) if your gun uses the larger 8-40 screws.
Short action - Outside to outside of rings is 4.26" for standard ring mounts. Standard rings are.63" wide and have 2 ring screws per ring. Tactical rings are.80" wide and have 4 ring screws per ring. 4 Hole to hole spacing dimensions are.86" 3.63".60". Height of mounts from top of receiver to centerline of scope tube is - low.98" medium 1.11" and high 1.23".
Specifications
| Brand | DNZ |
|---|---|
| Model | Game Reaper-Remington |
| Series | Game Reaper |
| Tube Diameter | 30mm |
| Length | 5.391" |
| Finish | Matte |
| Material | 6061-T6 Aluminum |
| Warranty | Mfg Limited Lifetime |
| Country of Origin | USA |
| Pieces | 1-Piece |
| Mount Style | Integral Rings & Base |
| Ring Height | Medium |
| Action | Short Action |
| Ring Height Actual | 1.11" |
| Firearm Type | Rifle |
| Mount Type | To Receiver |
| Rings Included | Yes |
| MPN | 34702 |
| UPC | 879956006462 |
