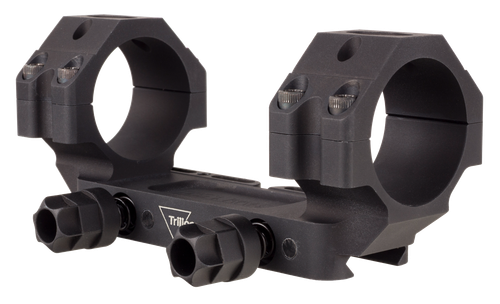

Shop the Trijicon Black Aluminum 34mm Tube Bolt Action at Nautilus Sporting Goods. Key specs: Black Matte Anodized finish and 4.70" long.
Trijicon's Bolt Action Mount w/ Trijicon Q-LOC Technology is designed to keep the optic as low as possible for hunting and long range precision rifle applications. Featuring a Mil-Spec drop test rated 6061-T6 aluminum design, and an easy to use one handed toolless mounting system.The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.
This mount boasts a low weight and low profile design with precise return to zero performance, and is compatible with any Mil-Spec or NATO Picatinny rail.
Designed specifically for variable powered optics, this lightweight mount is perfect for mounting Trijicon variable powered tube scopes with a 42mm objective lens and smaller, on any firearm platform with a picatinny rail.
Distance From Top of Mounting Rail to Optical Axis: 1.06 in.
Torque Spec (to Rail):
Spring Tension Only: 12-16 in. / lbs
Can be Tightened To: 44-66 in. / lbs
Torque Spec (Ring Caps):
14-16 in. / lbs
NOTE: Fits Objective Lens 42mm and Smaller. The Trijicon Q-LOC Technology Bolt Action 34mm mount is not compatible with the Credo/Credo HX 1-8x28 riflescope. A Trijicon Q-LOC Technology Cantilever 34mm mount is available for the Credo/Credo HX 1-8x28.
Features
- Quick-release, return-to-zero
- Automatic retention keeps optics secure
- Snag-resistant knob design
- Precision-cut dimensions
- Proven durability
- Weight 7.34 oz. (208.09g)
- Tube Size 34mm
- Length 4.7 in (119.38mm)
- Width 2.07 in (52.58mm)
- Height Above Rail (in/mm) 1.06" in. (26.92mm)
- Feature Trijicon Q-LOC Technology
Specifications
| Brand | Trijicon |
|---|---|
| Tube Diameter | 34mm |
| Length | 4.70" |
| Finish | Black Matte Anodized |
| Material | Aluminum |
| Weight | 7.34 oz |
| Height | 1.06" |
| Country of Origin | USA |
| Pieces | 1-Piece |
| Mount Style | Picatinny Style |
| Warranty | Mfg Lifetime (original owner) |
| MPN | AC22043 |
| UPC | 719307616585 |
