Shop the Trijicon Cantilever with Q-Loc Scope Mount/Ring Combo Black 34 MM Tube at Nautilus Arms. Key specs: Anodized finish and 6.10" long.

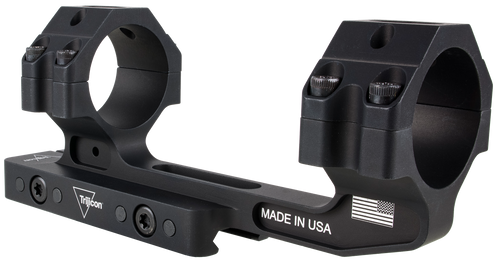

The Trijicon Cantilever Mount w/ Q-LOC Technology features a 34mm tube, and is designed to keep the optic as low as possible for hunting and long range precision rifle applications. Featuring a Mil-Spec drop test rated 6061-T6 aluminum design and an easy to use one handed tool less mounting system. The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.
The mount boasts a low weight and low profile design with superior return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail.
Designed specifically for variable power optics, this lightweight mount is perfect for mounting Trijicon Variable power optics with an objective lens up to 56mm on any weapon platform with a full Picatinny rail.
Matte black anodized finish
Made in the USA
Distance From Top of Mounting Rail to Optical Axis:
Fits Objective lens up to 56mm
Spring Tension Only: 12-16 in. / lbs.
Can be Tightened To: 30-38 in. / lbs.
Torque Spec (Ring Caps): 14-16 in. / lbs.
NOTE: Fits Objective Size up to 56mm.
Features
- Quick-release, return to zero
- Automatic retention keeps optic secure
- Snag resistant knob design
- Precision cut dimensions
- Proven durability
- Tube Size 34mm
- Housing Material 6061-T6 Aluminum
- Finish Matte Black
- Length 6.1 in (154.94mm)
- Width 2.8 in (71.12mm)
- Height Above Rail (in/mm) 1.93" in. (49.02mm)
- Feature Trijicon Q-LOC Technology
Specifications
| Brand | Trijicon |
|---|---|
| Model | Cantilever w/Q-LOC |
| Length | 6.10" |
| Color | Black |
| Finish | Anodized |
| Material | 6061 T-6 Aluminum |
| Size | 34mm |
| Pieces | 1 |
| Rings Included | Yes |
| Mount Type | Picatinny Rail |
| Height | 1.93" |
| Type | Mount |
| MPN | AC22050 |
| UPC | 719307618800 |
